Corrugator Rolls

Specialized in the design, manufacturing, and refurbishment of high-precision corrugating rolls for board production lines

We have been focusing on the design and manufacturing of corrugating rolls since 2004, providing essential components for the core of every corrugated board production line.

Backed by over two decades of industry experience, we deliver roll solutions that support high-speed production, wide-width formats, and the shift toward lightweight paper use. Our in-house engineering team continuously refines flute profile design to improve corrugated cardboard quality and material efficiency. Supported by a large-scale flute database, each roll is developed with precision and tailored to customer needs. From material selection to surface treatment, every detail is handled with care to ensure stable performance, long service life, and consistent output. At Yonghui, corrugating rolls are more than metal parts, they are the driving force behind every corrugated board line.

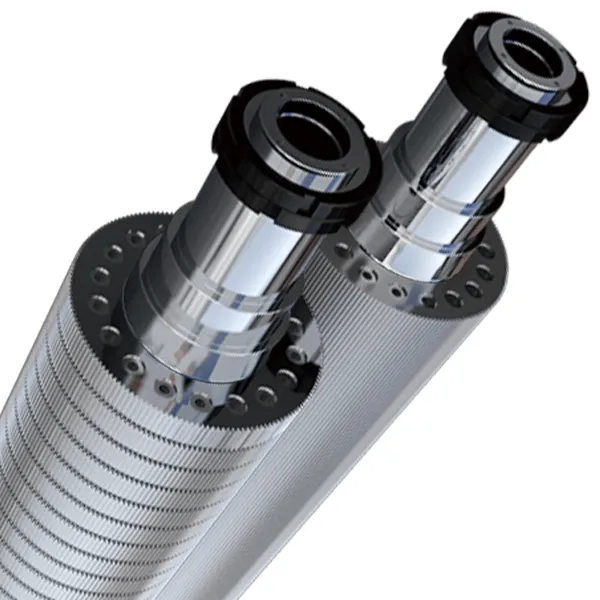

    1. Corrugating Rolls
    2. Corrugating Rolls Corrugating rolls have an important role in forming the fluted layer of corrugated boards. Their surface quality, hardness, and wear resistance directly affect the precision of flute shaping, the stability of bonding, and the overall output of the production line.

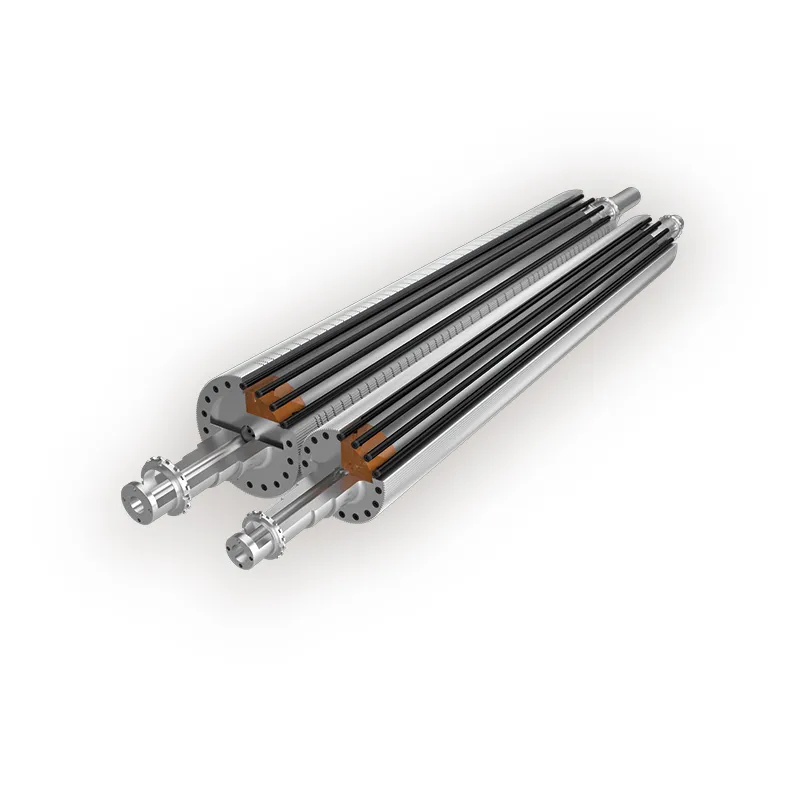

      Peripheral Heating Corrugating Rolls
      Tungsten Carbide Coated Corrugating Rolls
      Chrome Plated Corrugating Rolls
      Learn More

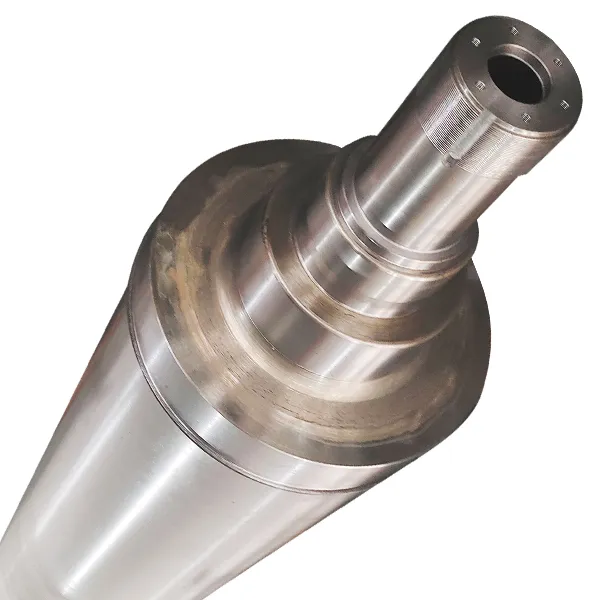

    1. Pressure Rolls
    2. Pressure Rolls Pressure rolls are one of the main components in the single facer section of a corrugated board production line. Working together with the corrugating rolls, they apply uniform pressure to bond the fluted medium to the linerboard, forming a stable and reliable single face web.
      Roll diameter: 200-600mm
      Roll width: 1000-3600mm
      Hardness: HRC>58
      Circular runout tolerance: ≤0.02mm
      Learn More

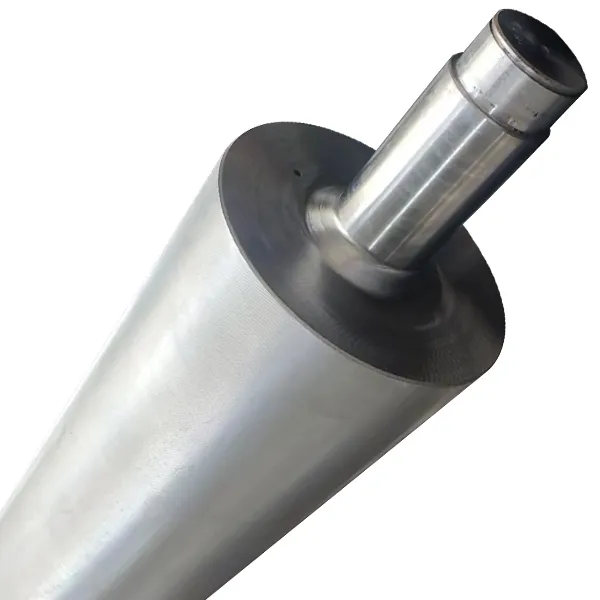

    1. Glue Rolls
    2. Glue Rolls Glue rolls are integral components in the single facer section of a corrugating machine. Their function is to apply starch adhesive precisely onto the flute tips of the corrugated medium, allowing the linerboard to bond securely and form a stable board structure during production.
      Roll diameter: 200-400mm
      Roll width: 1000-3600mm
      Coating layer: 0.03-0.05mm (chrome plated)
      Circular runout tolerance: ≤0.02mm
      Learn More

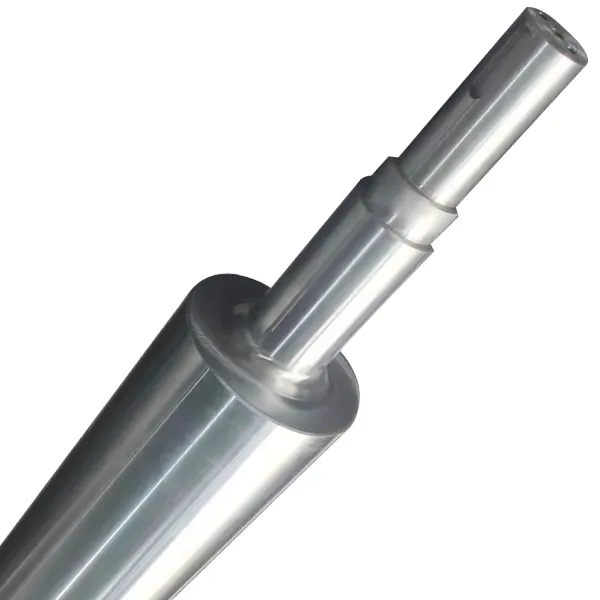

    1. Doctor Rolls
    2. Doctor Rolls Doctor rolls help regulate adhesive transfer in single facers, working alongside glue rolls to ensure the right amount of starch adhesive reaches the flute tips.
      Roll diameter: 100-300mm
      Roll width: 1000-3600mm
      Coating layer: 0.03-0.05mm (chrome plated)
      Circular runout tolerance: ≤0.02mm
      Learn More

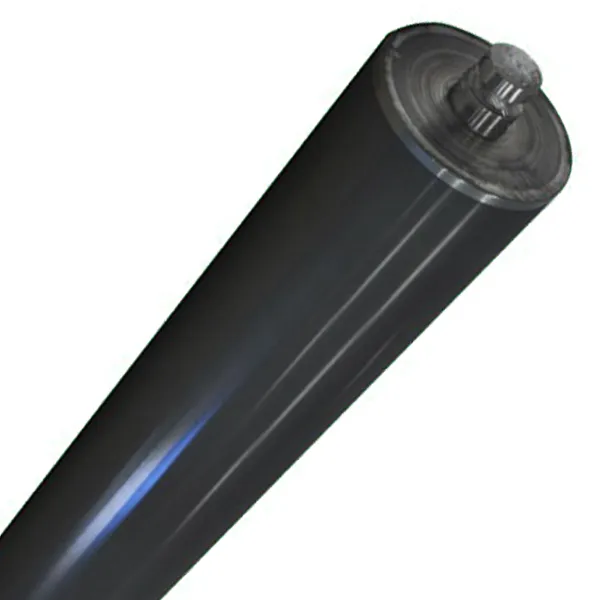

    1. Anilox Rolls
    2. Anilox Rolls Anilox rolls are used in both corrugated board production and flexographic printing, where they enable controlled and repeatable transfer of inks, adhesives, or coatings.
      Porosity: 1-3%
      Coating hardness: HV0.3≥1200
      Circular runout tolerance: 0.005mm
      Cylindricity: 0.01
      Learn More

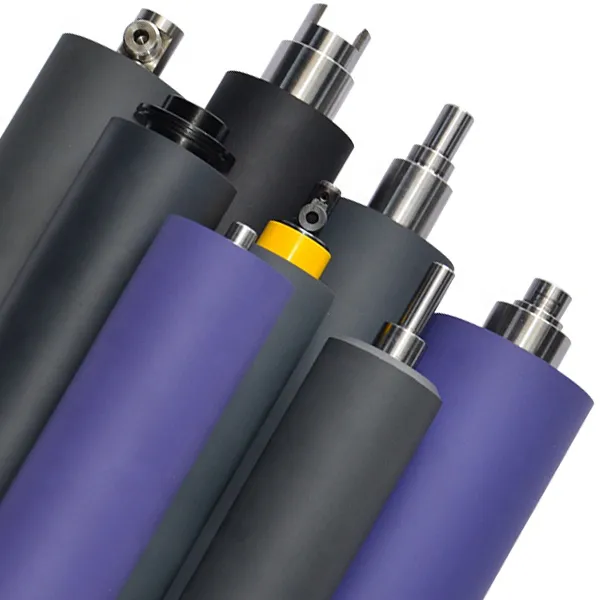

    1. Rubber Rollers
    2. Rubber Rollers Rubber rollers are key components in corrugated board printing units, where they ensure uniform ink distribution and consistent contact with the substrate. Their precision and surface quality directly affect print clarity, color stability, and overall production efficiency.
      Rubber covering: nitrile rubber, polyurethane (PU), ethylene propylene rubber (EPR), silicone rubber, natural rubber, etc.
      Hardness: Shore hardness from 20 to 90 (hardness will vary depending on different printing requirements)
      Learn More

Tungsten carbide rolls are known for their exceptional wear resistance, which significantly reduces the frequency and cost of roll replacements, by up to 65–80 percent compared to standard rolls. In addition, they help maintain consistent corrugated board quality and reduce material waste caused by production defects. A standard corrugating roll typically lasts between 6 and 8 million meters, while our tungsten carbide rolls can reach 30 million meters or more, offering a much longer service interval.

Yes, our rolls are designed for compatibility with a wide range of corrugator systems, including models from BHS, Fosber, Mitsubishi, BW Papersystems, Marquip, Peters, Isowa, JS, TCY, West River, Hsieh Hsu, K&H, XHL, Fuli, and Wanlian. Each corrugating roll can be customized to match the specifications and flute profiles required by the customer’s equipment.

Our tungsten carbide rolls are manufactured with a coating thickness between 0.06 mm and 0.08 mm, providing a balanced combination of surface hardness, strength, corrosion resistance, and wear protection.

Corrugating rolls are the core components used to shape the flutes in corrugated board. They form the base of the structure by pressing the paper into a wave-like pattern. Pressure rolls work in tandem with corrugating rolls to bond the fluted medium to the liner under pressure. Additional rollers such as glue rolls, doctor rolls, anilox rolls, and rubber rollers play supporting roles in glue application, glue control, and paper transport during the forming and bonding process.
Roll Refurbishment & Customized Solutions
Roll Refurbishment & Retrofit

We offer complete roll refurbishment and retrofit solutions tailored for the corrugated packaging and printing sectors.

Roll Refurbishment & Solutions
Solutions

We focus on delivering high-quality customized solutions for corrugator machine components, tailored to meet the unique needs of our customers in corrugator rolls and corrugated board equipment.

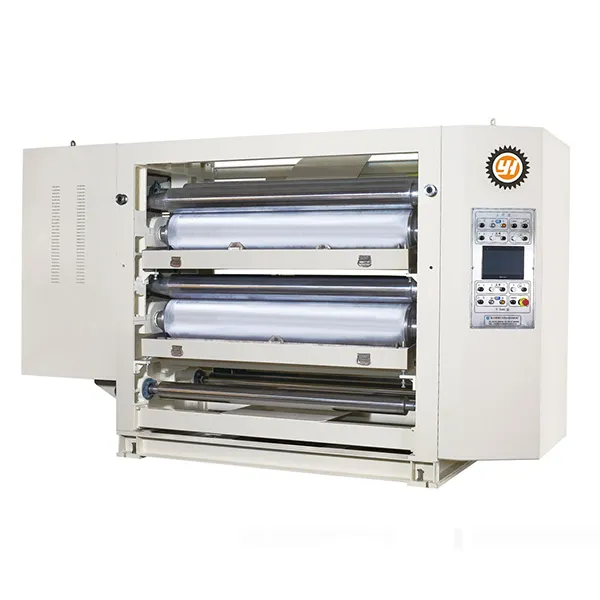

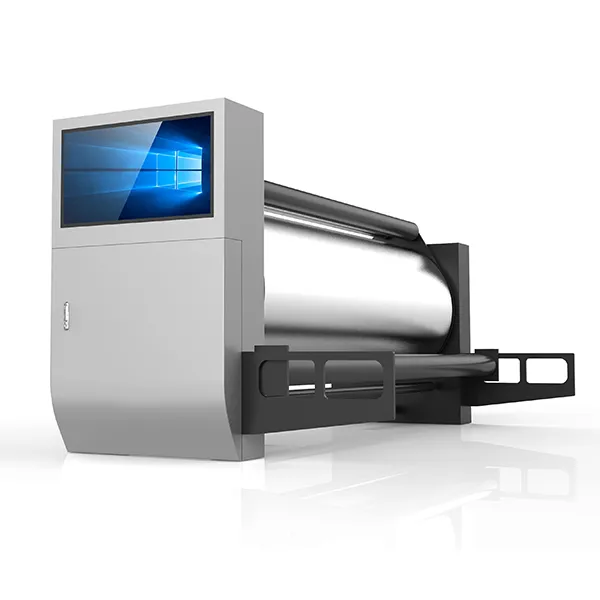

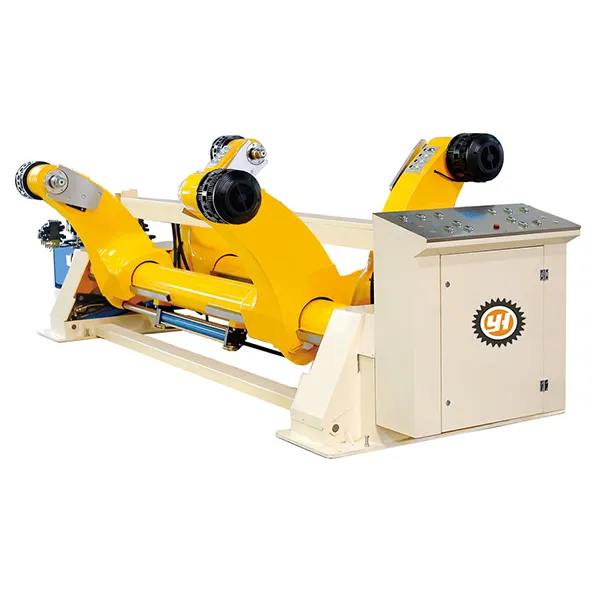

Corrugated Board Machinery
Looking for reliable corrugating rolls and corrugated board machinery?

Our team is ready to help you find the right rolls, equipment and solutions for your corrugated board production

Contact Us
